9. Data manipulation


In this chapter, we will see techniques for working with data, including

  • Data sorting
  • Data filtering
  • Validating data
  • Adding subtotals

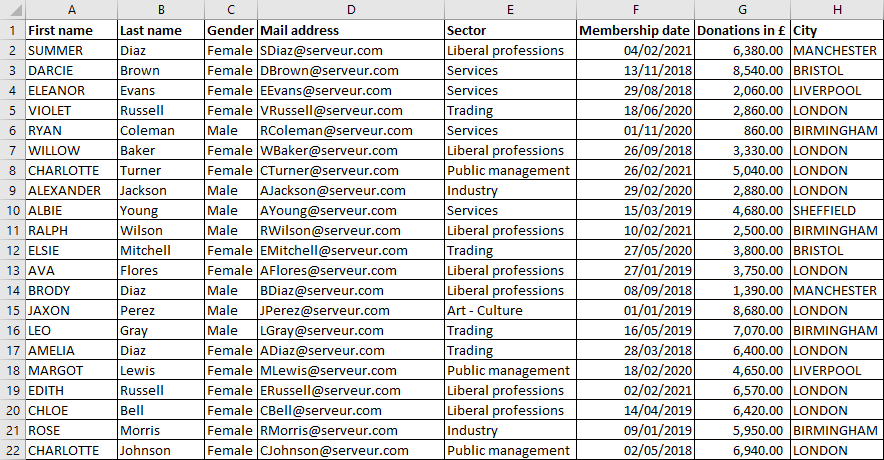

Consider the following workbook extract:

Excel 2016 Example Data manipulation

You can download this file here

9.1. Sorting data

For example, let's sort this list by membership date. To do this:

  • Select a cell in the "Membership date" column
  • Click on the Data tab of the ribbon
  • Click on the Sort Oldest to Newest command. Or click on the Sort Newest to Oldest button; depending on which way you want to sort the list

Excel 2016 Example Data manipulation Sort Data

NOTE. The Sort commands are also available on the Home tab of the ribbon; following the path: Home tab/Sort & filter/Sort...

For example, we want to sort according to the date of membership but with each sector separately. We must therefore sort according to the sector and according to the date of membership as follows:

  • Select any cell in the list
  • Click on the Data tab of the ribbon
  • Click on the Sort command

Excel 2016 Example Data manipulation Sort Data

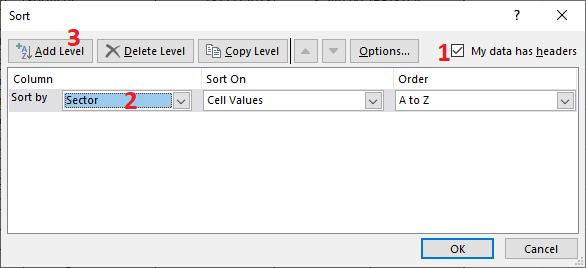

  • The Sort dialog box appears. Make sure that the box My data has headers is checked.
  • Select the "Sector" column in the Sort by list.
  • Then click on the Add Level button.

Excel 2016 Sort dialog box

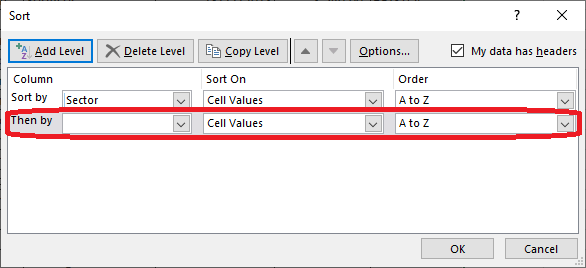

  • A second level of sorting is added. Select the column "Membership date" in the list Then by.
  • Finally validate by clicking on the OK button.

Excel 2016 Sort dialog box

NB. You can, of course, add other sorting levels.

9.2. Data filtering

This technique allows us to display a subset of our data list according to one or more criteria. For example, we want to display only :

  • Female members
  • Members from one or more sectors
  • People who joined in 2016 for example
  • As we can also make a combination of two or more criteria

Here is how to do it:

  • Select a cell in your list
  • Click on the Data tab of the ribbon
  • Click on the Filter command

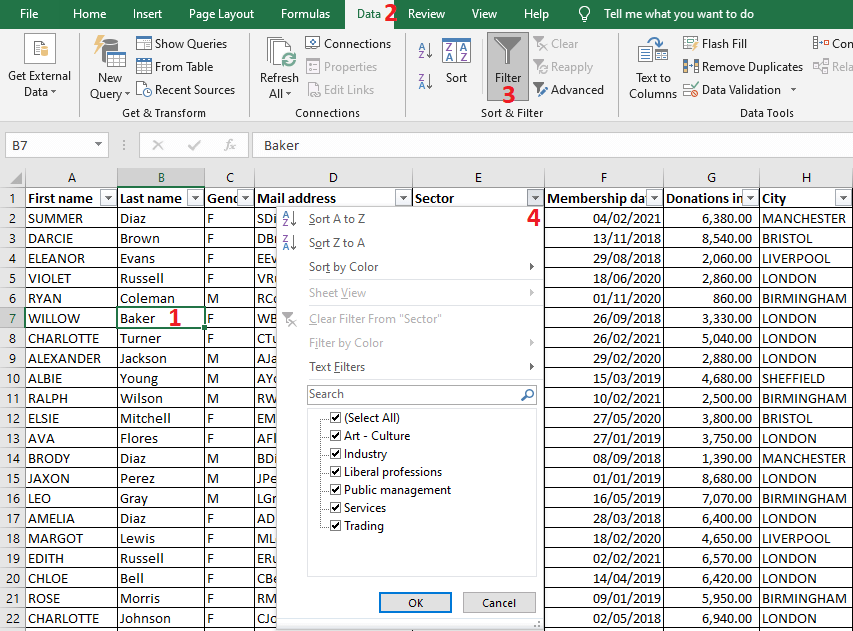

  • The column headers will have buttons that allow you to open a filter menu Filter Menu button, cliquez par exemple sur le bouton à l’entête de la colonne « Secteur d’activité »

 Excel 2016 Example of data filtering

  • A list of unique values sorted in order is displayed, with a checkbox in front of each value.
  • Click the Select All checkbox to uncheck all checkboxes
  • Click on the checkbox or checkboxes you want. For example, check the boxes for "Trading" and "Services".
  • Validate with the OK button. Note that only the rows with one or the other of the values "Trading" and "Services" are displayed in the "Sector" column.

You can add other criteria. For example, to display the members of the "Trading" and "Services" activity sectors living in "London":

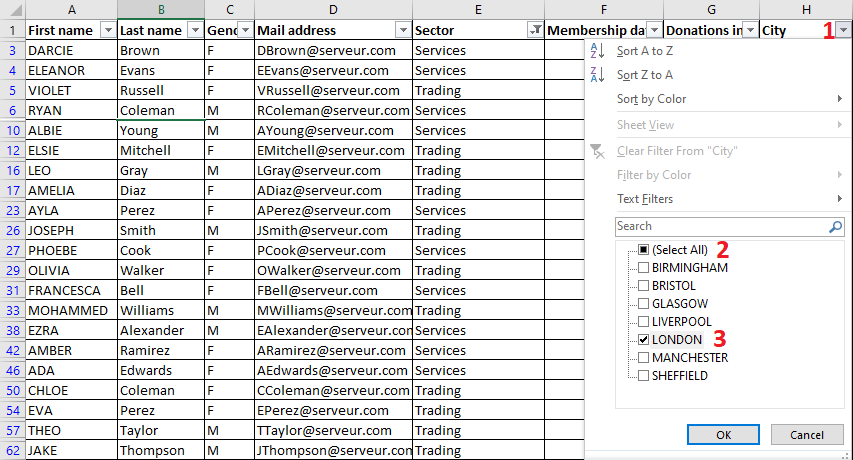

  • Click on the button opening the filtering menu Filter Menu button at the top of the "City" column
  • Click on the Select All checkbox to uncheck all checkboxes
  • Click on the "London" checkbox

Excel 2016 Example of data filtering

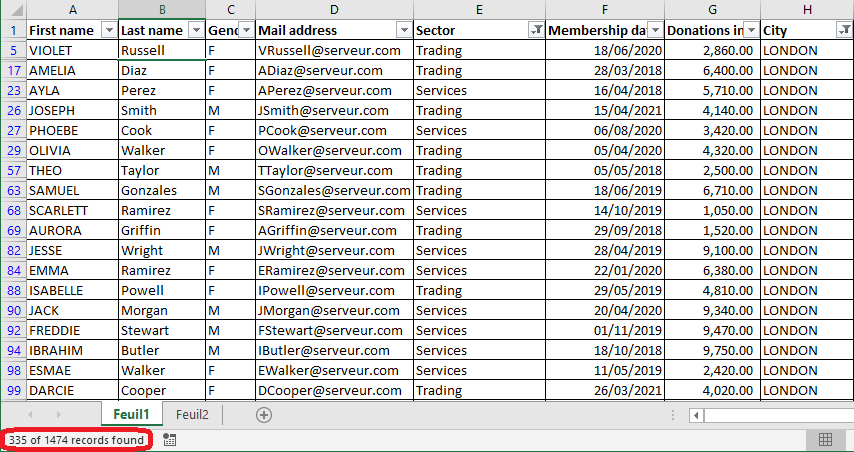

  • Click on the OK button to validate. Notice that at the bottom of the screen, Excel displays the number of records (= rows) found:

Excel 2016 Number of records found

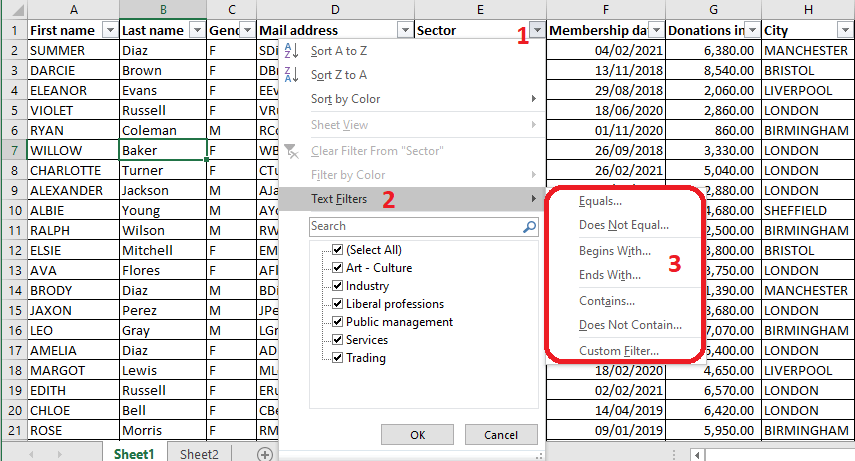

Now I invite you to see the options in the Text Filters menu. Click on the button to open the filter menu Filter Menu button at the header of a column filled with plain text (without dates or numbers), for example the "Activity sector" column, then on the Text Filters menu :

Excel 2016 Text Filters

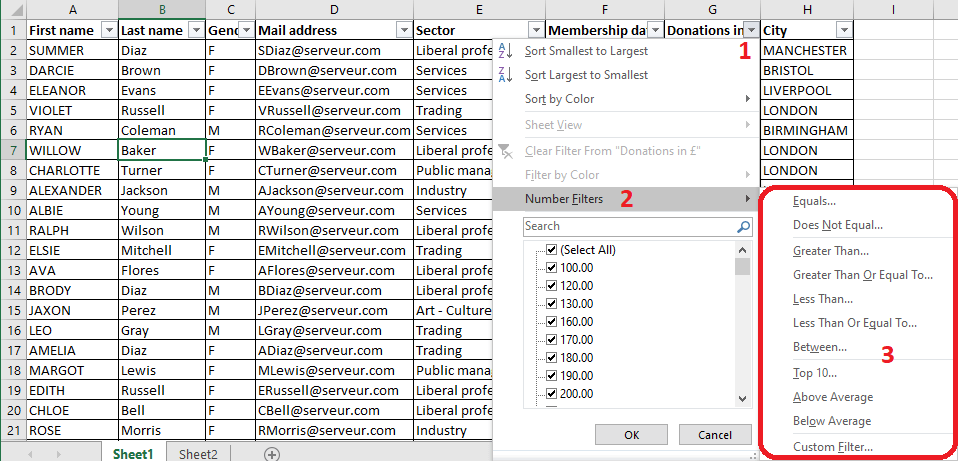

Also note the options available for a column of type Numbers. Click on the button to open the filter menu Filter Menu button at the header of the "Donations in £" column, then on the Number Filters menu:

Excel 2016 Number Filters

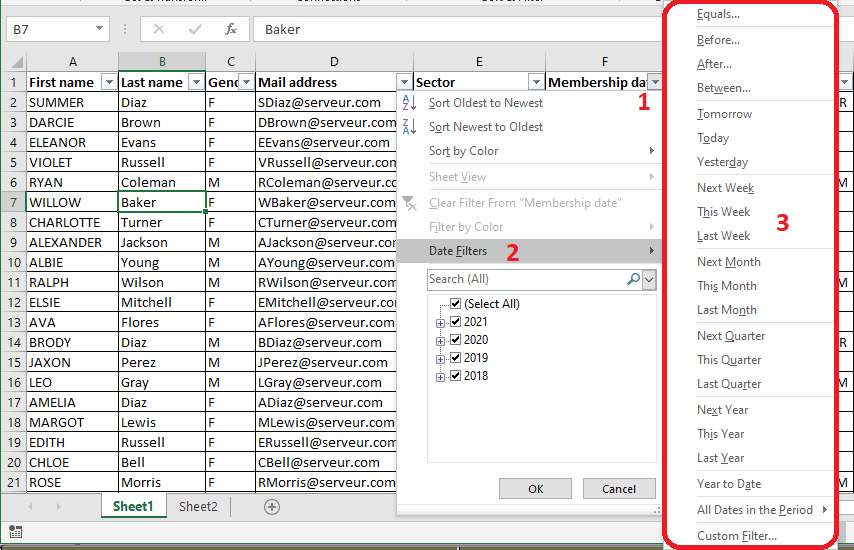

Also note the options available for a column of type Dates. Click on the button to open the filter menu Filter Menu button in the column header "Membership date", then on the menu Date Filters :

Excel 2016 Date Filters

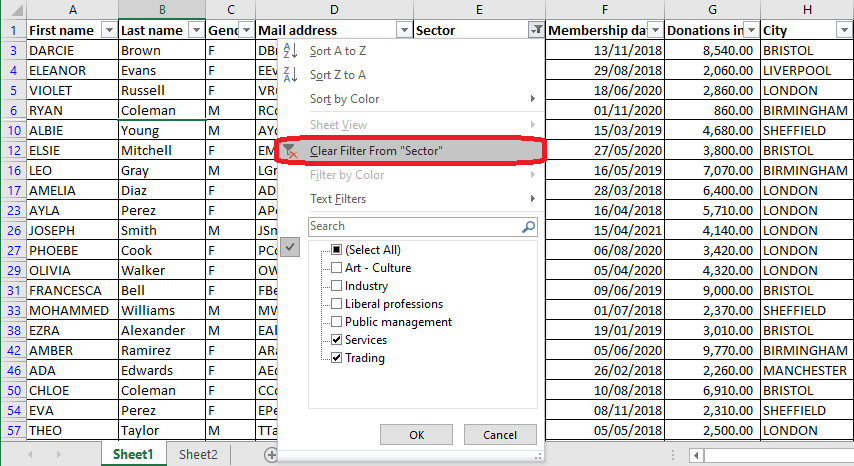

To cancel the filtering of a column:

  • Click on the button opening the filtering menu Filtering Menu button at the header of a column involved in the filtering. For example, the Sector column
  • Click on the Clear filter from "Sector" command

Excel 2016 Clear filter

NOTE. To cancel all filters, click on the Filter button on the Data tab.

9.3. Data validation

Data validation is a possibility that allows us to impose restrictions on the values accepted in a column. We can, for example, impose that the values entered in a column are numbers in a desired range of values. This is also useful when a column can only take a limited number of values, as is the case with the "Gender" column, which must only have the values M or F.

But why impose constraints, especially if I am the one who is going to fill my file?

Normally, whether it is you who fills in the file or you give it to other people to fill in, you should know that mistakes happen everywhere and that we need to work rapidly. For a date column, for example, you mistakenly enter values like "30/02/2018" or "11/15/2018". In this case, Excel will tell you right away that the value entered is not correct.

As we will see with examples, there is a possibility to display an explanatory message, as soon as the cell in question is active. We can also specify an error message that is displayed when an incorrect value is entered.

Let's consider the same example from this chapter:

  • Select the "Membership Date" column
  • Click on the Data tab of the ribbon

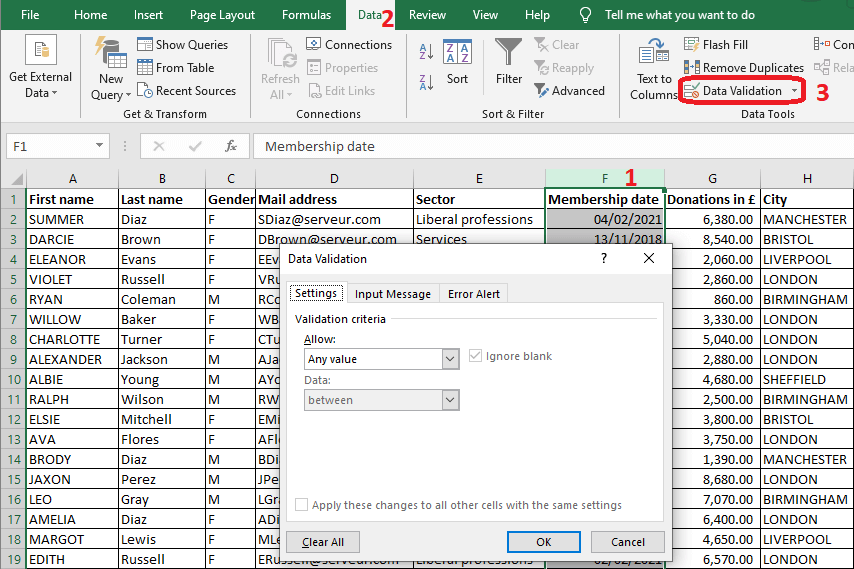

  • Click on the Data Validation command. The Data Validation dialog box will open

 Excel 2016 Data Validation

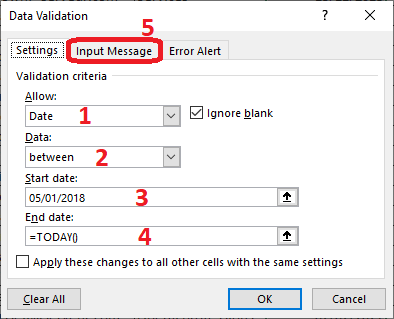

In the Data Validation dialog box:

  • Choose "Date" from the Allow list.
    NOTE. Fields are added according to the value chosen from the Allow list.
  • For the Data list, let's leave the option "between".
  • Assuming that the association designated by this workbook was created on 05/01/2018, no one has joined before this date. Therefore, in the Start date field of the Data validation dialog box, let's set the value "05/01/2018".
  • In the End date field, let's set the value to "=TODAY()". The predefined function TODAY returns today's date; the one configured in your Windows system.
  • Finally, go to the Input Message tab of this dialog box

 Excel 2016 Data Validation dialog box

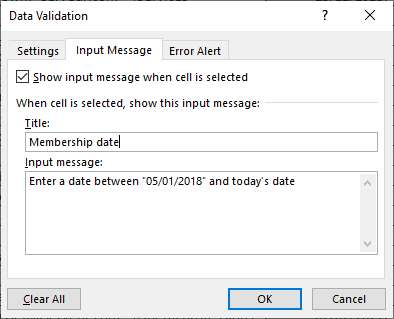

The Input Message tab of the Data Validation dialog box allows you to define a message that appears when the cell in question is selected:

  • Enter a Title
  • Enter an Input message
  • Then go to the Error Alert tab of this dialog box

 Excel 2016 Data Validation dialog box Input Message tab

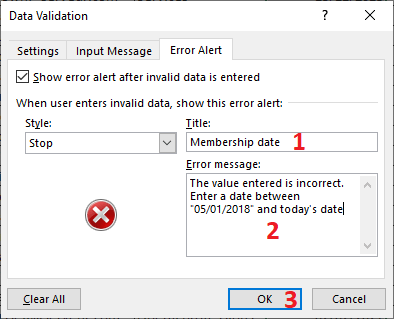

The Error Alert tab of the Data Validation dialog box allows you to define a message that appears when a value that does not respect the validation rule is entered in a cell concerned by this validation:

  • Enter a Title
  • Enter an Error message
  • Then validate by clicking on the OK button.

 Excel 2016 Data Validation dialog box Error Alert tab

It is also possible to validate data against a list of values. This is appropriate for the columns "Gender", "Sector" and "City" in our example, each of which accepts a limited number of values.

Let's illustrate this with the case of the "Sector" column. Let's start by entering the values in a range of cells. And since I prefer to enter this list in another sheet, I will first :

  • Add a new worksheet. To do this, click on the Add Sheet button Add Sheet button at the bottom left of the Excel window

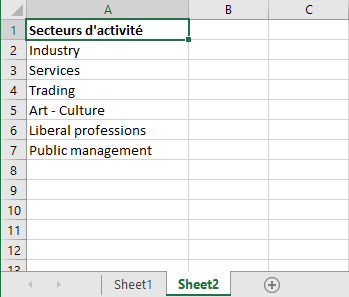

  • To the created sheet, enter the values as follows:

Excel 2016 Example Data Validation

  • Reactivate sheet 1; click on the tab of sheet1 at the bottom left of the Excel window
  • Select the "Sector" column
  • Open the Data Validation dialog box

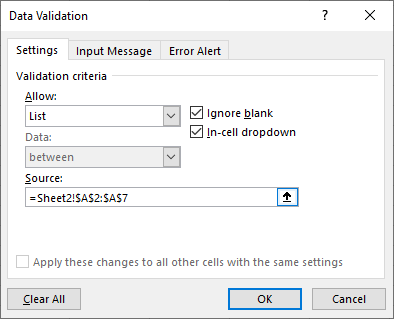

  • Choose "List" from the Allow list. Leave the "Ignore blank" and "In-cell dropdown" boxes checked
  • In the Source field of the dialog box, enter the address of the range A2:A7 on sheet 2, where we entered the list of sector values. I remind you that if you want Excel to add this address :
    • Click at the Source field in the Data Validation dialog box.
    • Reactivate Sheet2; click on the Sheet2 tab at the bottom left of the Excel window
    • Select the cell range A2:A7
    • Validate by clicking on the OK button.

 Excel 2016 Data Validation dialog box Allow List

Here you can also add an input message and an error alert as in the previous example.

Now check the effect of your configuration:

  • Click on a cell in the "Sector" column. Notice the button that appears to the right of the cell
  • Click on this button to open the list. Notice that the list contains the entries you entered in range A2:A7 on Sheet 2
  • Click on an entry in the list and notice that this value is written to the cell

9.4. Adding subtotals

Let's use the same example and add subtotals for "Donations" by "City" and "Sector".

However, in this case, we need to sort by "City" and "Sector". I remind you of the procedure for doing this sorting:

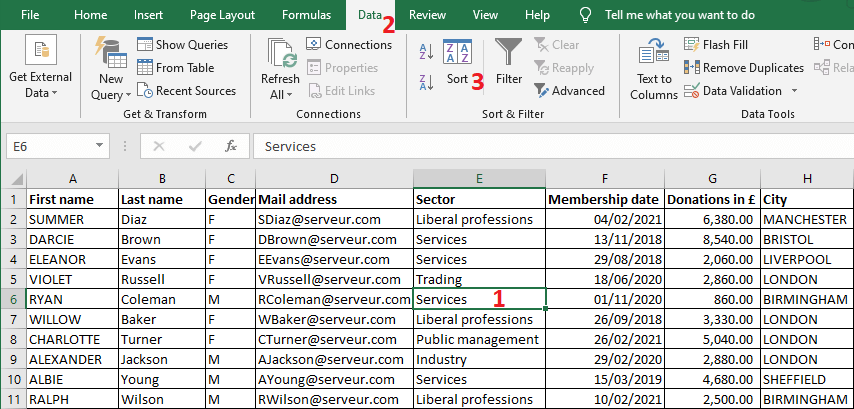

  • Click on a cell in the data list
  • Click on the Data tab
  • Click on the Sort command. The Sort dialog box appears.

 Excel 2016 Example Sort data

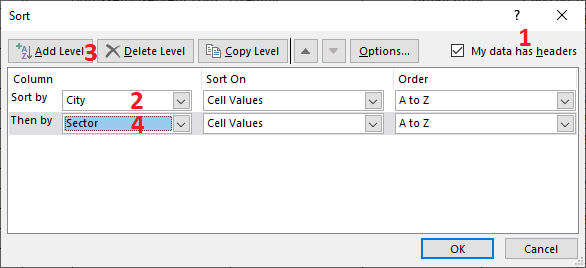

In the Sort dialog box :

  • Make sure that the box My data has headers is checked.
  • Select the "City" column in the Sort by list.
  • Then click on the Add Level button.

Excel 2016 Sort dialog box

  • A second level of sorting is added. Select the column "Sector" in the list Then by.
  • Finally, validate by clicking on the OK button.

Now let's add the subtotals for "Donations" by "City" and by "Sector":

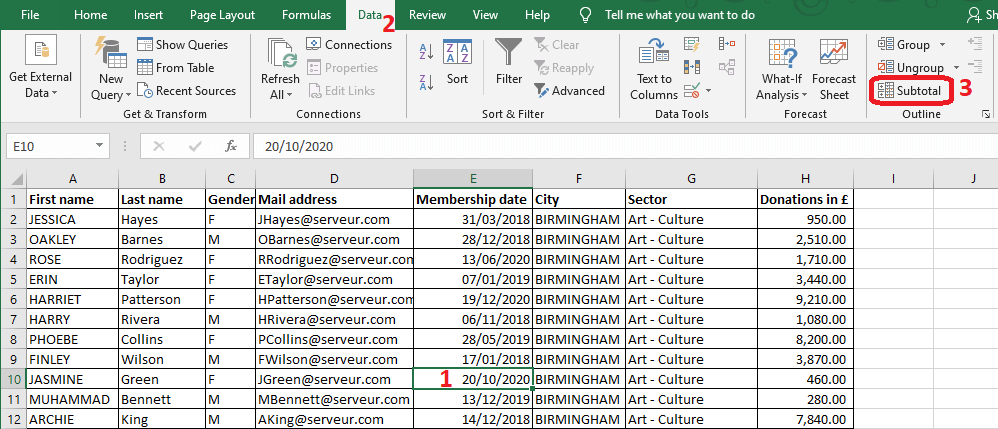

  • Click on a cell in the data list
  • Click on the Data tab
  • Click on the Subtotal command. The Subtotal dialog box appears.

Excel 2016 Example Subtotal

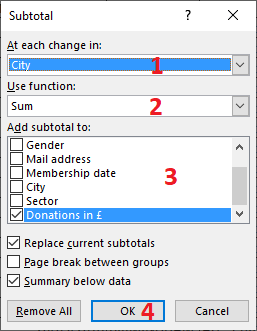

In the Subtotal dialog box that appears:

  • Select "City" from the list At each change in
  • Select "Sum" from the Use function list
  • Check "Donations in £" from the list Add subtotal to
  • Click on the OK button

 Excel 2016 Subtotal dialog box

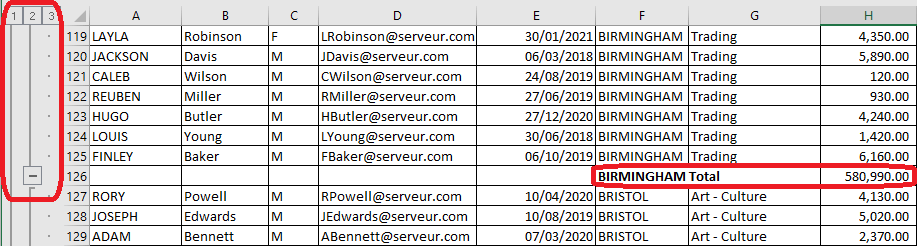

Notice the addition to your sheet of a row with a subtotal for each value change in the "City" column. Also notice the addition of grouping symbols on the left side of the Excel window. Click on each of these grouping symbols Grouping symbol, Grouping symbol, Grouping symbolGrouping symbol and Grouping symbol to see the result.

 Excel 2016 Example Subtotal

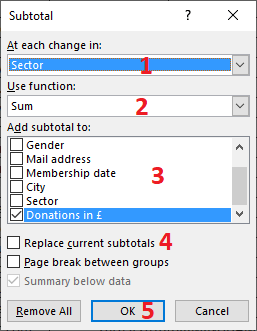

Now let's add the subtotals by "Sector". To do this, click once again on the Subtotal button on the Data tab of the Ribbon. The Subtotal dialog box will appear. Fill it in as follows:

  • Select "Sector" from the list At each change in
  • Select "Sum" from the Use Function list
  • Check "Donations in £" from the Add subtotal to list
  • Uncheck Replace current subtotals, so that Excel does not override the previous subtotal
  • Click on the OK button

Excel 2016 Subtotal dialog box

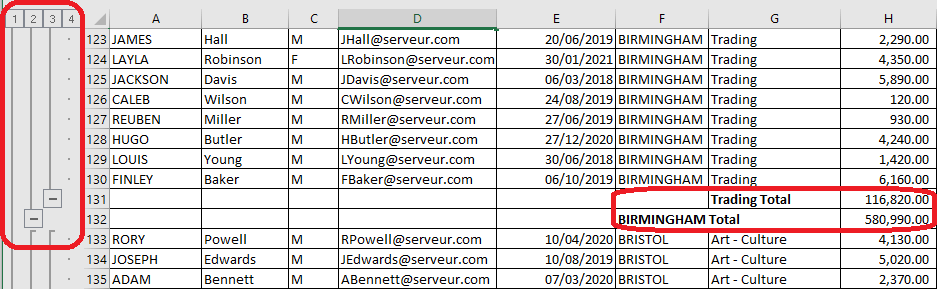

Notice the addition of subtotals by "City" and by "Sector". And notice the addition of the fourth level for grouping symbols.

 Excel 2016 Example Subtotal
