14. Excel How to add a secondary axis ?
Consider the following spreadsheet extract:

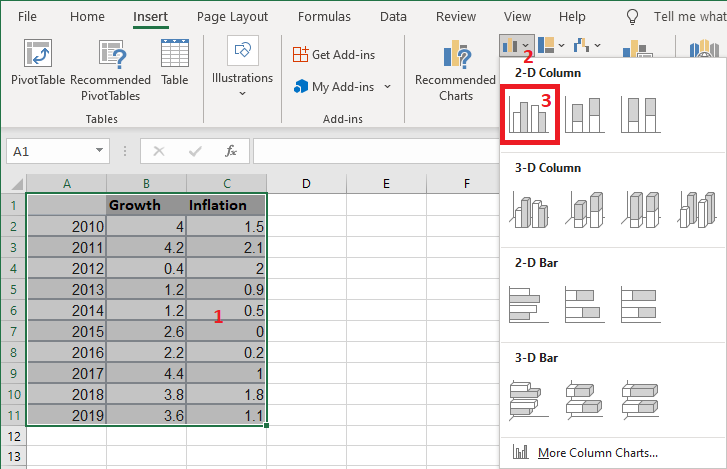

Let's create a histogram for the two data series "Growth" and "Inflation":
- Select the cell range A1:C11
- Click on the Insert tab of the Ribbon
- Click on the Insert Column or Bar Chart command.
- Choose the Clustered Column sub-type.

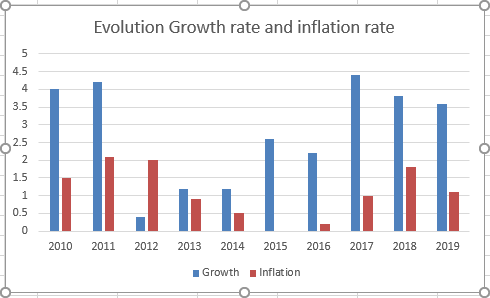

Resulting graph :
The two data sets "Growth" and "Inflation" should not have the same axis. So let's create a secondary axis for the "Inflation" data series and with the type Line. Proceed as follows:
- Select the chart.

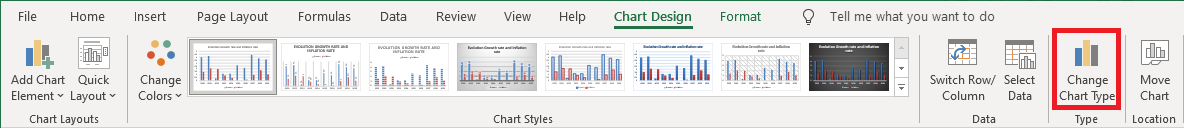

- Click the Change Chart Type button on the Chart Design tab of the ribbon

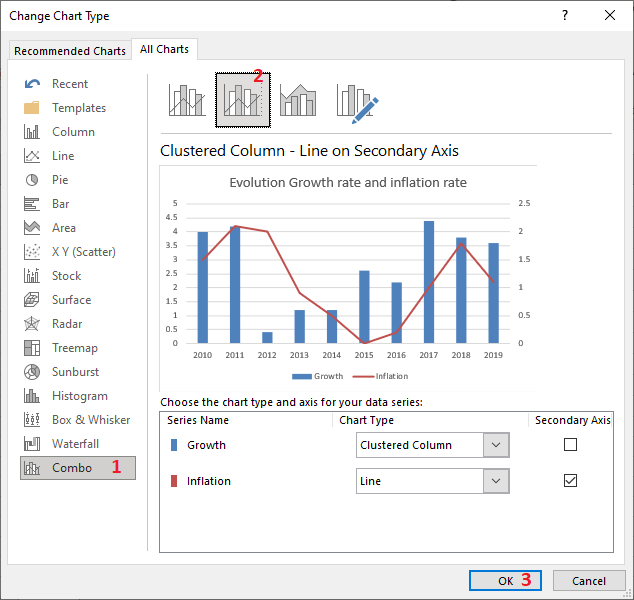

- In the Change Chart Type dialog box that appears :
- Click the Combo tab
- Click on the Clustered Column - Line on Secondary Axis button
- Confirm with the OK button.

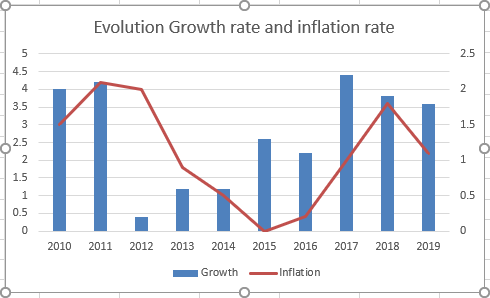

You should have the following graph :
